Palisade Fencing South Africa

Material: Q235

Surface Treatment: Hot dipped galvanized or Hot dip galvanized+PVC coated

Color: Nature, Green RAL6005, Black RAL9005, Blue, Yellow, etc

Technique: punched into different models

Usage: Used for garden, road, playground, park etc.

Fence panel height:1m-6m

Fence panel width:1m-3m

Pale height:0.5m-6m

Pale width:W pale 65-75mm, D pale 65-70mm

Pale thickness:1.5mm-3.0mm

Angle rail:40mm×40mm, 50mm×50mm, 63mm×63mm

Angle rail thickness:3mm-6mm

RSJ post:100mm×55mm, 100mm×68mm, 150mm×75mm

Square post:50mm×50mm, 60mm×60mm,

75mm×75mm, 80mm×80mm

Square post thickness:1.5mm-4mm

Straight fish-plates or post clamps:30mm×150mm×7mm, 40mm×180mm×7mm

Bolts and nuts:M8 × No.34 for pale fixing,

M12 × No.4 for rail fixing

Product Detail

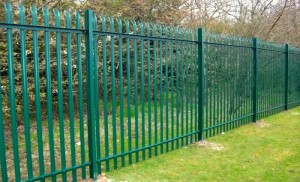

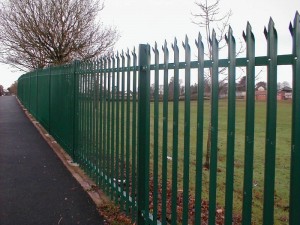

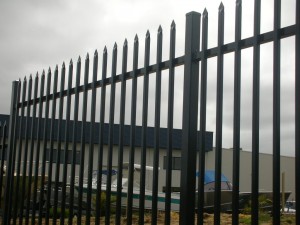

Palisade Fence widely accepted as the industry leader to protect

and deter general attack from all types and conditions of intrusion.

The pales are made of hot formed and cold rolled steel belts.

These belts offer both strength and rigidity combined with a long life span.

Palisade normally produce three types of pales, “W” profile, “D” profile and angle iron.
