garden fence
garden fence,
Bending Fence, Garden Fence, Safety Fence, securty fence,
PVC Coated 3D Fence
3D Welded Wire Mesh Fencing is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. Welded Wire Mesh Fencing is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.

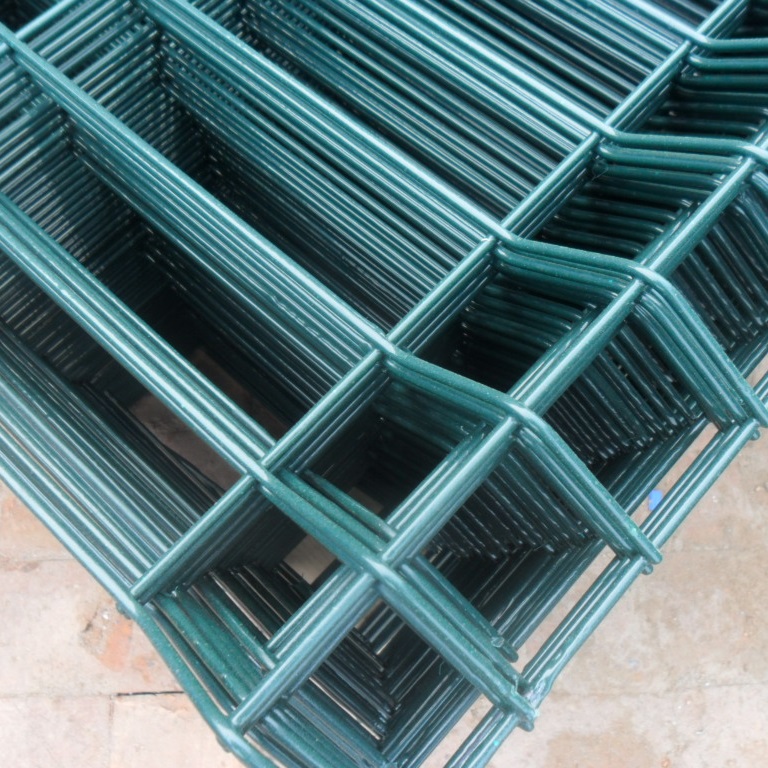

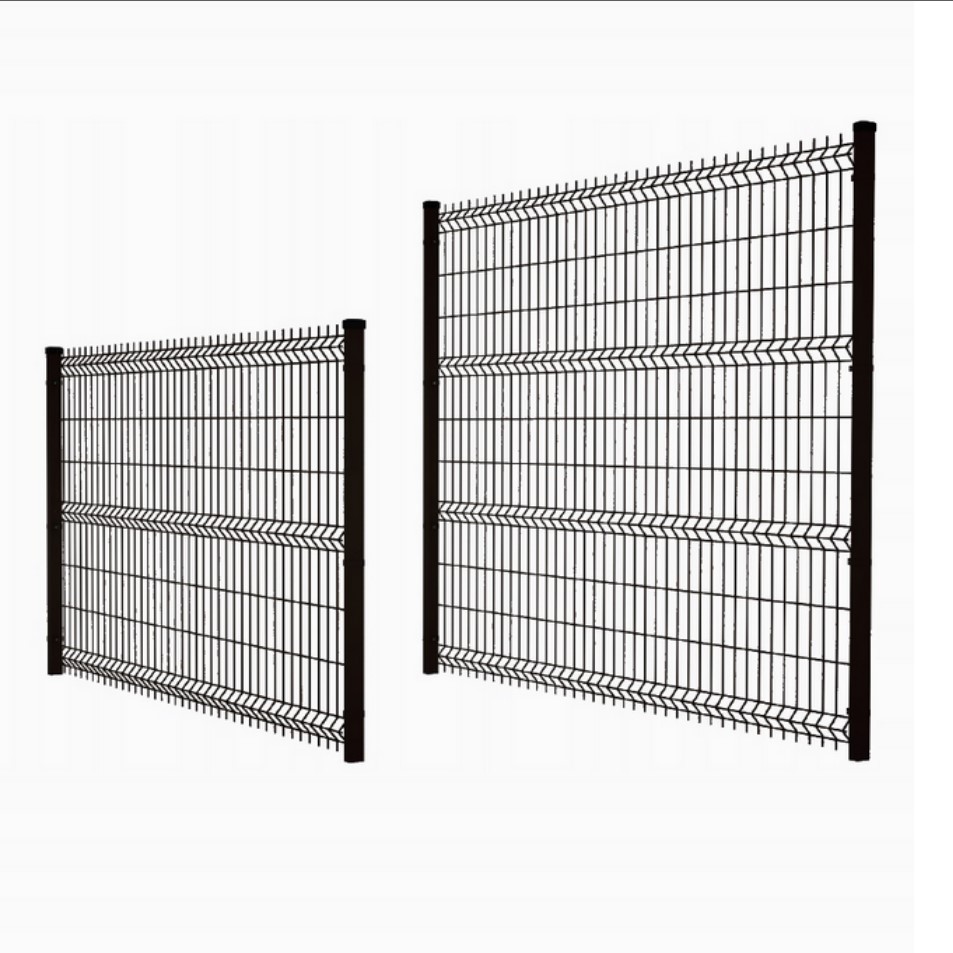

3D Welded Wire Fence
Wire diameters: 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm.
Curve count: 2, 3, 4, 5 .
Surface treatment: galvanized then spray, galvanized then pvc coated.
Color: RAL 6005 moss green, RAL 5015 sky blue, deep gray or French grey, black.
Name | Welded mesh fence/3D fence |
Material | Iron steel wire,galvanized wire,galfan wire |
Surface treatment | powder painting,PVC coated |
Application | Highways,roads,railways,airports,factories,living site,industrial, development zone and so on. |
Specifications can be made according to your requirements |

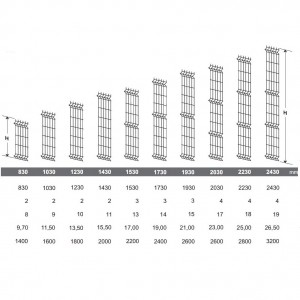

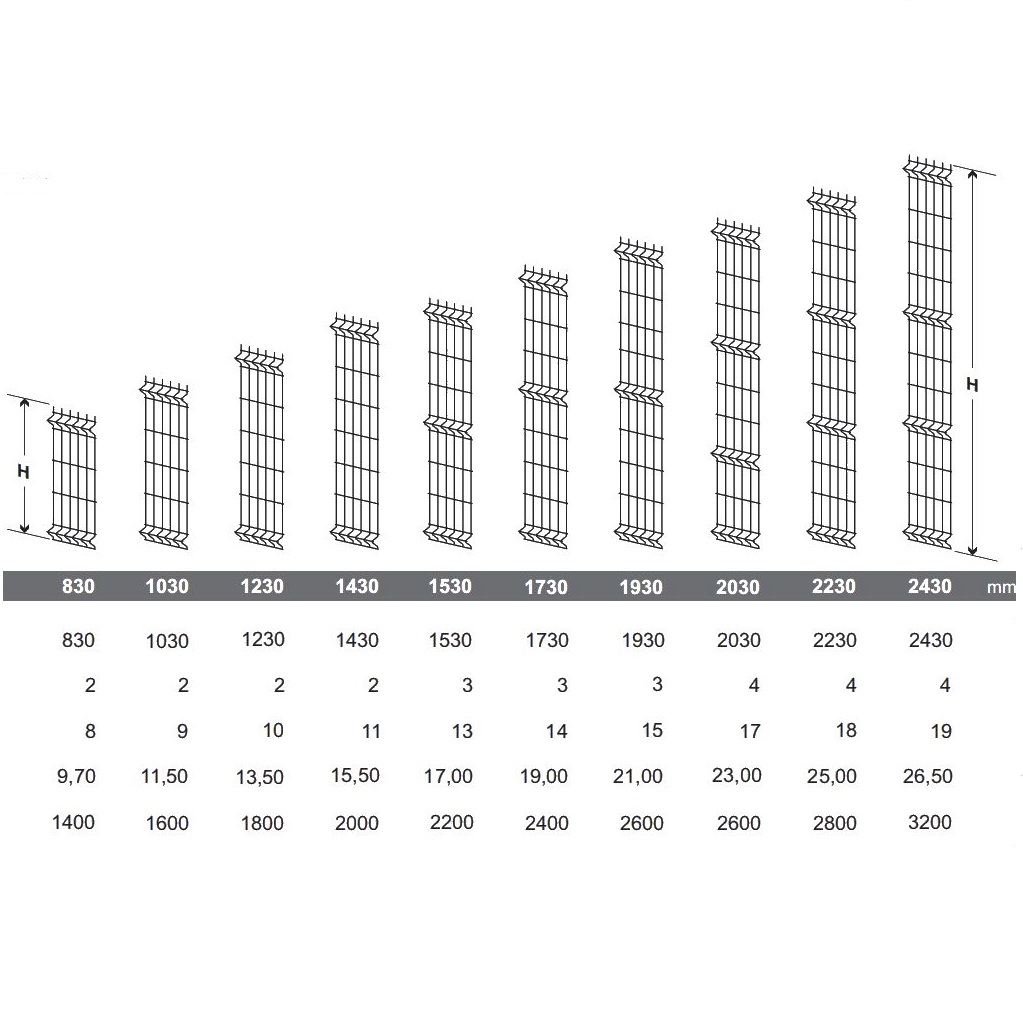

Common specification:
Wire Dia. |
Mesh Size |
Panel Width |
Panel Height |
Fold No. |
Post’s height |
|

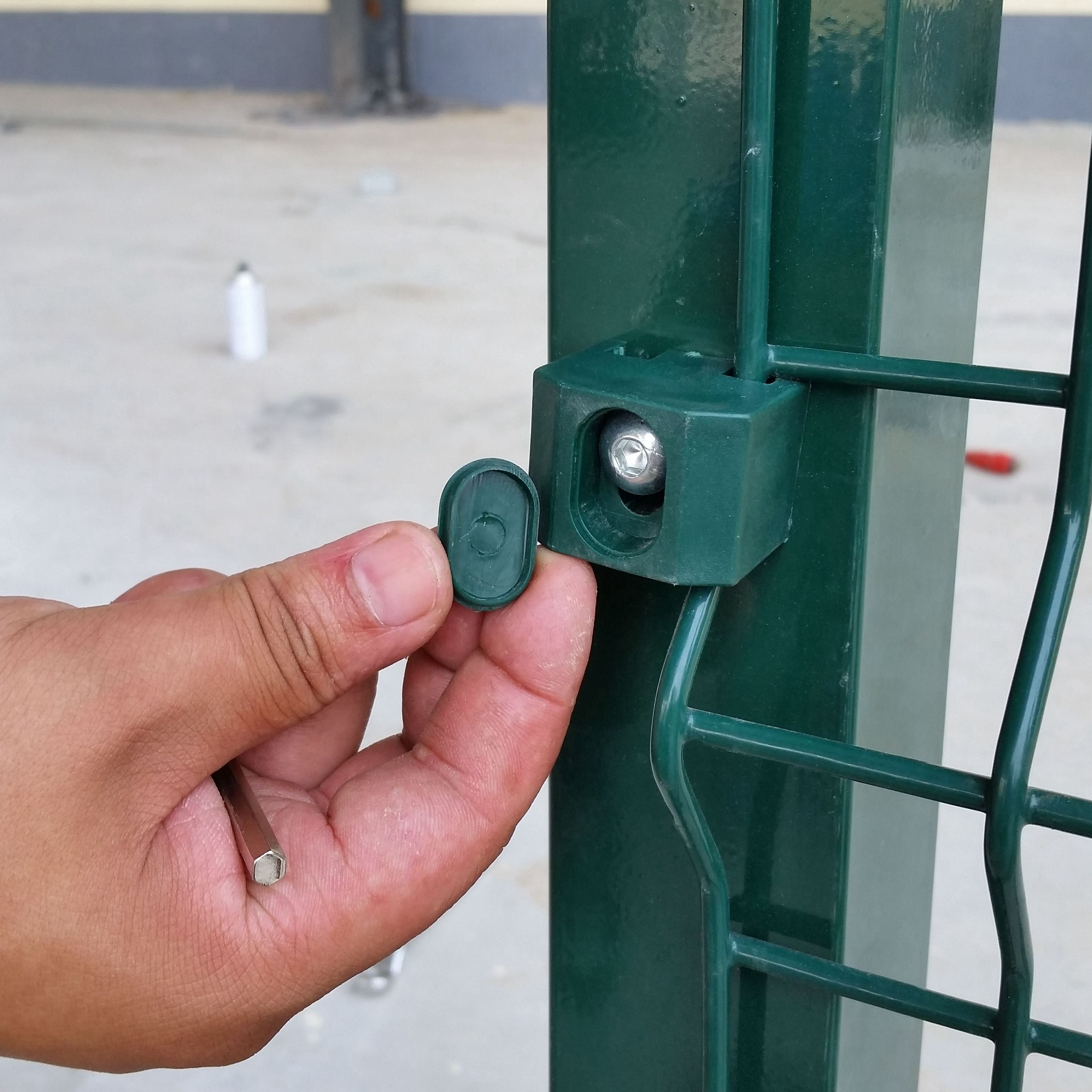

Post with Flange |
Pre-Buried Post |
|||||
3.5mm |
200*50mm |
2.0m |
0.635m |
2 |
0.73 |
1.33 |
0.835m |
2 |
0.93 |
1.53 |
|||
1.035m |
2 |
1.13 |
1.73 |
|||
1.235m |
2 |
1.33 |
1.93 |
|||
1.435m |
2 |
1.53 |
2.03 |
|||
1.535m |
3 |
1.63 |
2.23 |
|||
1.635m |
3 |
1.73 |
2.33 |
|||
1.735m |
3 |
1.83 |
2.43 |
|||
1.835m |
3 |
1.93 |
2.53 |
|||
1.935m |
3 |
2.03 |
2.63 |
|||
2.035m |
4 |
2.13 |
2.73 |
|||
2.235m |
4 |
2.33 |
2.93 |
|||
2.435m |
4 |
2.53 |
3 |
3D Welded Wire Fence Panels Applications:
1. Home garden building wire mesh fencing
2. Residential wire mesh fencing
3. Filed wire mesh fencing
4. Animal wire mesh fencing
5. Supermarket parking wire mesh fencing
6. Wire mesh fencing for Parks, Zoos and nature reserves
Details of the figure
